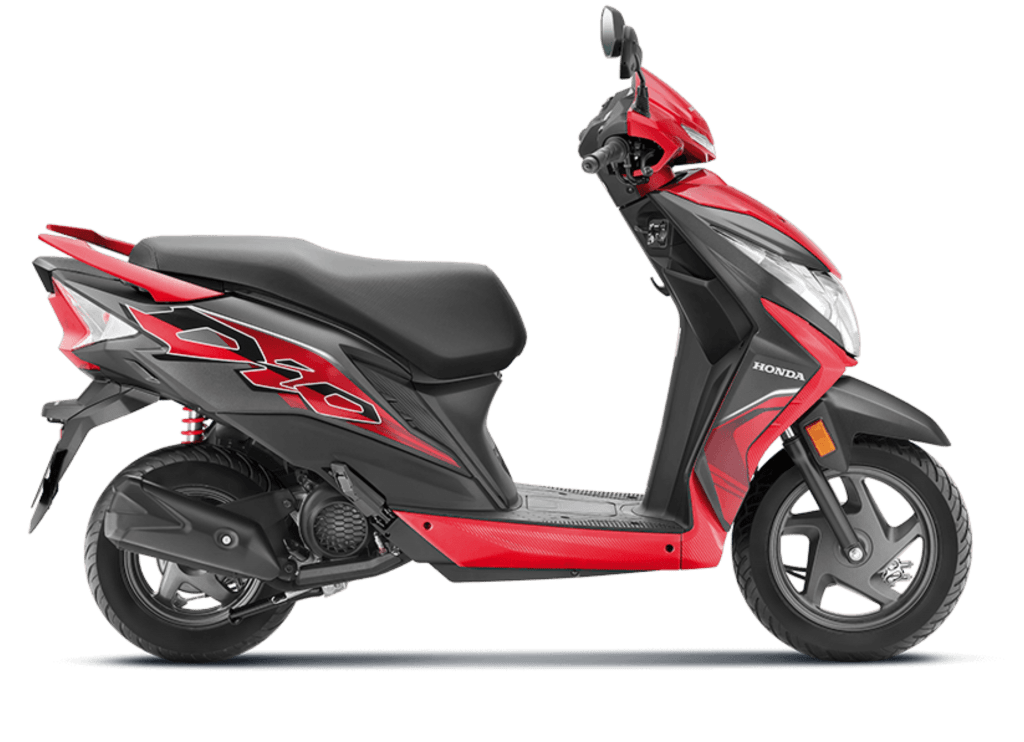

Dio BS6

With a sportier look and aggressive design, it’s time to express your attitude in the streets. DIO your sporty side, DIO some thrills.
An all-new revamped version of the Dio, complying with Bharat Standard – VI (BS-VI) Emission regulations and with the addition of programmed fuel-injection system. The top-of-the-line Dio DX (introduced in 2018) has been retained with redesigned full digital speedometer and power seats.

Keep Dio’ing it.

Specifications

Body Dimensions

Tyres & Brakes

Engine

Others

Body Dimensions

Length	1808mm
Width	723mm
Height	1150mm
Wheel Base	1260mm
Ground Clearance	160mm
Seat Length	650mm
Kerb Weight	105KG
Fuel Tank Capacity	5.3L

Tyres & Brakes

Tyre Size (Front)	90/90-12 54J
Tyre Size (Rear)	90/100-10 53J
Tyre Type (Front)	Tubeless
Tyre Type (Rear)	Tubeless
Brake Type & Size (Front)	Disc 130mm
Brake Type & Size (Rear)	Drum 130mm

Engine

Type	Fan Cooled, 4 Stroke, SI Engine
Displacement	109.51cc
Max Net Power	5.71 kW @ 8000 rpm
Max Net Torque	9 Nm @ 4750 rpm
Bore	47.0mm
Stroke	63.1mm
Fuel System	PGM-Fi
Compression Ratio	10.0±0.2
Air Filter Type	Viscous paper filter
Starting Method	Kick/Self

Others

TRANSMISSION

Clutch Type

Automatic

FRAME & SUSPENSION

Frame Type	Under Bone
Front	Telescopic Suspension
Rear	3-Step Adjustable, Spring Loaded Hydraulic

ELECTRICALS

Battery	3 Ah
Headlamp	LED

*The technical specifications and design of the vehicle may vary according to the requirements and conditions without any notice:

Dio meets Bharat Stage VI norms.
Product shown in the picture may vary from actual product available in the market.
Accessories shown in the picture are not part of standard equipment.
The technical specifications mentioned are for Deluxe variant
